Product Description
- Enclosure: Made of PE injection molded high-strength polypropylene engineering plastic.
- Installation: It can be installed by hanging (5*M10 flying points) or fixed installation using 35mm bracket holes and a dual-hole tray that is adjustable between 0° and 7.5°.
- Design: Elegant appearance with 45° angled sides for use as a monitor speaker.

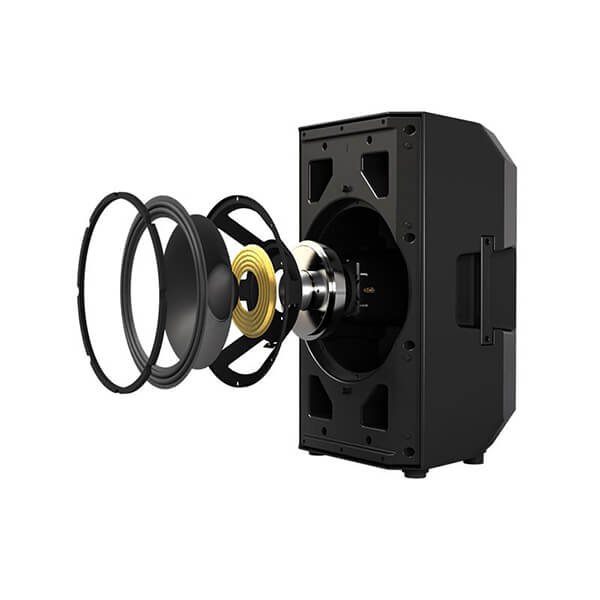

- Components: Main components utilize imported parts and ferrite magnetic circuit design for high efficiency.
- Amplifier: Features a built-in 24-bit/48kHz DSP, allowing users to select different sound modes via an LCD screen and adjust EQ, dynamics, crossover, delay, and level parameters.
- Amplifier Circuit: Dual amplifier circuit design with low-frequency Class D and high-frequency Class AB amplifiers, ensuring high efficiency, small size, high power, lightweight, and stable performance, resulting in delicate and soft sound quality with high resolution and wide power supply compatibility for worldwide use.
SPECIFICATIONS:
| Model: | FPE 10AD | Type: | ACTIVE FULLRANGE INJECTION MOULDED |
| Power Source: | ACTIVE | RMS Power(W): | 1400 W |
| SPL Max.: | 124.5 dB | Frequency Response Range (-): | 60 Hz |
| Frequency Response Range (+): | 20k Hz | LF Size: | 10″ |
| Number of LFs: | 1 | MF Size: | – |
| Number of MFs: | 0 | HF Size: | 1.34″ |
| Number of HFs: | 1 | Height in mm: | 515 mm |
| Width in mm: | 310 mm | Depth in mm: | 280 mm |
| Weight in kg: | 12.8 kg | Input Connector: | XLR-1/4″ combo, 1/8″ JACK |
| Output Connector: | XLR | Housing: | Polypropylene Plastic |
| Color: | Black | Voltage: | 100 V- 240V |
| Mounting: | Pole mount, Flying, Floor monitor |
